PreparedStatement可以防止sql注入,这个大家都知道;今天来聊聊他对性能的提升。

SQL syntax

SQL syntax for prepared statements is based on three SQL statements:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
mysql> PREPARE stmt1 FROM 'SELECT * FROM words where id = ?';
Query OK, 0 rows affected (0.00 sec)
Statement prepared

mysql> SET @i=1;
Query OK, 0 rows affected (0.00 sec)
mysql> EXECUTE stmt1 USING @i;
Empty set (0.01 sec)

mysql> SET @i=2;
Query OK, 0 rows affected (0.00 sec)
mysql> EXECUTE stmt1 USING @i;
+----+------+
| id | word |
+----+------+
| 2 | 123 |
+----+------+
1 row in set (0.00 sec)

mysql> deallocate prepare stmt1;
Query OK, 0 rows affected (0.00 sec)

mysql> EXECUTE stmt1 USING @i;
ERROR 1243 (HY000): Unknown prepared statement handler (stmt1) given to EXECUTE

MySQL Connector/J

普通的sql执行

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
@Test
@SneakyThrows
public void testPreCompile() {
String connectString = "jdbc:mysql://localhost/test?user=root&password=toor&useLocalSessionState=true&useSSL=false";
Class.forName("com.mysql.jdbc.Driver")
.newInstance();
try (Connection conn = DriverManager.getConnection(connectString)) {
Stopwatch stopwatch = Stopwatch.createStarted();
try (PreparedStatement psts = conn.prepareStatement("delete from words where id = ?")) {
psts.setInt(1, 1);
psts.execute();
stopwatch.stop();
System.out.println("stopwatch = " + stopwatch.elapsed(TimeUnit.MILLISECONDS));
psts.setInt(1, 10);
psts.execute();
}
}
}

wireshark抓包:

mysql general log:

1
2
3
4
5
6
2020-05-04T13:06:07.883131Z	   15 Connect	root@localhost on test using TCP/IP
2020-05-04T13:06:07.885668Z 15 Query /* mysql-connector-java-8.0.16 (Revision: 34cbc6bc61f72836e26327537a432d6db7c77de6) */SELECT @@session.auto_increment_increment AS auto_increment_increment, @@character_set_client AS character_set_client, @@character_set_connection AS character_set_connection, @@character_set_results AS character_set_results, @@character_set_server AS character_set_server, @@collation_server AS collation_server, @@collation_connection AS collation_connection, @@init_connect AS init_connect, @@interactive_timeout AS interactive_timeout, @@license AS license, @@lower_case_table_names AS lower_case_table_names, @@max_allowed_packet AS max_allowed_packet, @@net_write_timeout AS net_write_timeout, @@performance_schema AS performance_schema, @@sql_mode AS sql_mode, @@system_time_zone AS system_time_zone, @@time_zone AS time_zone, @@transaction_isolation AS transaction_isolation, @@wait_timeout AS wait_timeout
2020-05-04T13:06:07.905021Z 15 Query SET character_set_results = NULL
2020-05-04T13:06:07.929557Z 15 Query delete from words where id = 1
2020-05-04T13:06:07.934906Z 15 Query delete from words where id = 10
2020-05-04T13:06:07.940645Z 15 Quit

with useServerPrepStmts=true

useServerPrepStmts

Use server-side prepared statements if the server supports them?

Default: false

Since version: 3.1.0

jdbc的连接参数加上useServerPrepStmts=true

首选需要编译statement,请求如下:

后面执行的时候,只传了对应的statement id 1和占位符对应的值 1,大大减少了网络的传输:

mysql的general log如下,也是先prepare, 然后excute了两次, 最后关闭stmt:

1
2
3
4
5
6
7
8
2020-05-04T13:15:55.611149Z	   16 Connect	root@localhost on test using TCP/IP
2020-05-04T13:15:55.615655Z 16 Query /* mysql-connector-java-8.0.16 (Revision: 34cbc6bc61f72836e26327537a432d6db7c77de6) */SELECT @@session.auto_increment_increment AS auto_increment_increment, @@character_set_client AS character_set_client, @@character_set_connection AS character_set_connection, @@character_set_results AS character_set_results, @@character_set_server AS character_set_server, @@collation_server AS collation_server, @@collation_connection AS collation_connection, @@init_connect AS init_connect, @@interactive_timeout AS interactive_timeout, @@license AS license, @@lower_case_table_names AS lower_case_table_names, @@max_allowed_packet AS max_allowed_packet, @@net_write_timeout AS net_write_timeout, @@performance_schema AS performance_schema, @@sql_mode AS sql_mode, @@system_time_zone AS system_time_zone, @@time_zone AS time_zone, @@transaction_isolation AS transaction_isolation, @@wait_timeout AS wait_timeout
2020-05-04T13:15:55.640086Z 16 Query SET character_set_results = NULL
2020-05-04T13:15:55.672345Z 16 Prepare delete from words where id = ?
2020-05-04T13:15:55.676355Z 16 Execute delete from words where id = 1
2020-05-04T13:15:55.681600Z 16 Execute delete from words where id = 10
2020-05-04T13:15:55.681949Z 16 Close stmt
2020-05-04T13:15:55.687659Z 16 Quit

cachePrepStmts和useServerPrepStmts同时打开

cachePrepStmts

Should the driver cache the parsing stage of PreparedStatements of client-side prepared statements, the “check” for suitability of server-side prepared and server-side prepared statements themselves?

Default: false

Since version: 3.0.10

这里就是加上缓存,stmt close的时候,并不会把之前预编译的stmt给关闭,这个缓存是connection级别的。

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
@Test
@SneakyThrows
public void testPreCompile() {
String connectString = "jdbc:mysql://localhost/test?user=root&password=toor&useLocalSessionState=true&useSSL=false&useServerPrepStmts=true&cachePrepStmts=true";
Class.forName("com.mysql.jdbc.Driver")
.newInstance();
try (Connection conn = DriverManager.getConnection(connectString)) {
Stopwatch stopwatch = Stopwatch.createStarted();
try (PreparedStatement psts = conn.prepareStatement("delete from words where id = ?")) {
psts.setInt(1, 1);
psts.execute();
stopwatch.stop();
System.out.println("stopwatch = " + stopwatch.elapsed(TimeUnit.MILLISECONDS));
psts.setInt(1, 10);
psts.execute();
}

// 上面的stmt关闭之后,再次执行
try (PreparedStatement psts = conn.prepareStatement("delete from words where id = ?")) {
psts.setInt(1, 100);
psts.execute();
}
}

// 上面的connection关闭之后,再次执行
try (Connection conn = DriverManager.getConnection(connectString)) {
try (PreparedStatement psts = conn.prepareStatement("delete from words where id = ?")) {
psts.setInt(1, 66);
psts.execute();
}
}

}

wireshark抓包:

mysql的general log:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
2020-05-04T15:17:32.921041Z	   19 Connect	root@localhost on test using TCP/IP
2020-05-04T15:17:32.929561Z 19 Query /* mysql-connector-java-8.0.16 (Revision: 34cbc6bc61f72836e26327537a432d6db7c77de6) */SELECT @@session.auto_increment_increment AS auto_increment_increment, @@character_set_client AS character_set_client, @@character_set_connection AS character_set_connection, @@character_set_results AS character_set_results, @@character_set_server AS character_set_server, @@collation_server AS collation_server, @@collation_connection AS collation_connection, @@init_connect AS init_connect, @@interactive_timeout AS interactive_timeout, @@license AS license, @@lower_case_table_names AS lower_case_table_names, @@max_allowed_packet AS max_allowed_packet, @@net_write_timeout AS net_write_timeout, @@performance_schema AS performance_schema, @@sql_mode AS sql_mode, @@system_time_zone AS system_time_zone, @@time_zone AS time_zone, @@transaction_isolation AS transaction_isolation, @@wait_timeout AS wait_timeout
2020-05-04T15:17:32.949986Z 19 Query SET character_set_results = NULL
2020-05-04T15:17:32.983173Z 19 Prepare delete from words where id = ?
2020-05-04T15:17:32.990498Z 19 Execute delete from words where id = 1
2020-05-04T15:17:32.997115Z 19 Execute delete from words where id = 10
2020-05-04T15:17:32.997566Z 19 Reset stmt
2020-05-04T15:17:32.997725Z 19 Execute delete from words where id = 100
2020-05-04T15:17:33.003682Z 19 Quit
2020-05-04T15:17:33.009206Z 20 Connect root@localhost on test using TCP/IP
2020-05-04T15:17:33.009643Z 20 Query /* mysql-connector-java-8.0.16 (Revision: 34cbc6bc61f72836e26327537a432d6db7c77de6) */SELECT @@session.auto_increment_increment AS auto_increment_increment, @@character_set_client AS character_set_client, @@character_set_connection AS character_set_connection, @@character_set_results AS character_set_results, @@character_set_server AS character_set_server, @@collation_server AS collation_server, @@collation_connection AS collation_connection, @@init_connect AS init_connect, @@interactive_timeout AS interactive_timeout, @@license AS license, @@lower_case_table_names AS lower_case_table_names, @@max_allowed_packet AS max_allowed_packet, @@net_write_timeout AS net_write_timeout, @@performance_schema AS performance_schema, @@sql_mode AS sql_mode, @@system_time_zone AS system_time_zone, @@time_zone AS time_zone, @@transaction_isolation AS transaction_isolation, @@wait_timeout AS wait_timeout
2020-05-04T15:17:33.010569Z 20 Query SET character_set_results = NULL
2020-05-04T15:17:33.011244Z 20 Prepare delete from words where id = ?
2020-05-04T15:17:33.011475Z 20 Execute delete from words where id = 66
2020-05-04T15:17:33.114892Z 20 Quit

连接关闭之后,重新执行同样的sql,发现又触发了编译。

缓存大小的限制

下面两个参数,分别限制了能够缓存多少个和最大sql的长度

prepStmtCacheSize

prepStmtCacheSize

If prepared statement caching is enabled, how many prepared statements should be cached?

Default: 25

Since version: 3.0.10

prepStmtCacheSqlLimit

If prepared statement caching is enabled, what’s the largest SQL the driver will cache the parsing for?

Default: 256

Since version: 3.0.10

druid 连接池下使用

测试代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
@Test
@SneakyThrows
public void testPreCompile() {
String connectString = "jdbc:mysql://localhost/test?user=root&password=toor&useLocalSessionState=true&useSSL=false&useServerPrepStmts=true&cachePrepStmts=true";

final DruidDataSource druidDataSource = new DruidDataSource();
druidDataSource.setUrl(connectString);
druidDataSource.setUsername("root");
druidDataSource.setPassword("toor");
druidDataSource.setFilters("slf4j");
// druidDataSource.setTestOnBorrow(true);
// druidDataSource.setTestOnReturn(true);
// druidDataSource.setTestWhileIdle(true);
druidDataSource.setMaxActive(1);
druidDataSource.setInitialSize(1);
druidDataSource.setTimeBetweenLogStatsMillis(900);
try (Connection conn = druidDataSource.getConnection()) {
Stopwatch stopwatch = Stopwatch.createStarted();
try (PreparedStatement psts = conn.prepareStatement("delete from words where id = ?")) {
psts.setInt(1, 1);
psts.execute();
stopwatch.stop();
System.out.println("stopwatch = " + stopwatch.elapsed(TimeUnit.MILLISECONDS));
psts.setInt(1, 10);
psts.execute();
}

// 上面的stmt关闭之后,再次执行
try (PreparedStatement psts = conn.prepareStatement("delete from words where id = ?")) {
psts.setInt(1, 100);
psts.execute();
}
}

// 上面的connection关闭之后,再次执行
try (Connection conn = druidDataSource.getConnection()) {
try (PreparedStatement psts = conn.prepareStatement("delete from words where id = ?")) {
psts.setInt(1, 66);
psts.execute();
}
}
}

只有一个连接的druid连接池,连接关闭连接时其实是归还到池子中,所以第二次拿连接,拿到的还是同一个;所以没有触发第二次编译。

wireshark抓包:

mysql general log:

1
2
3
4
5
6
7
8
9
10
11

2020-05-04T15:21:34.187732Z 21 Connect root@localhost on test using TCP/IP
2020-05-04T15:21:34.202166Z 21 Query /* mysql-connector-java-8.0.16 (Revision: 34cbc6bc61f72836e26327537a432d6db7c77de6) */SELECT @@session.auto_increment_increment AS auto_increment_increment, @@character_set_client AS character_set_client, @@character_set_connection AS character_set_connection, @@character_set_results AS character_set_results, @@character_set_server AS character_set_server, @@collation_server AS collation_server, @@collation_connection AS collation_connection, @@init_connect AS init_connect, @@interactive_timeout AS interactive_timeout, @@license AS license, @@lower_case_table_names AS lower_case_table_names, @@max_allowed_packet AS max_allowed_packet, @@net_write_timeout AS net_write_timeout, @@performance_schema AS performance_schema, @@sql_mode AS sql_mode, @@system_time_zone AS system_time_zone, @@time_zone AS time_zone, @@transaction_isolation AS transaction_isolation, @@wait_timeout AS wait_timeout
2020-05-04T15:21:34.240492Z 21 Query SET character_set_results = NULL
2020-05-04T15:21:34.316483Z 21 Prepare delete from words where id = ?
2020-05-04T15:21:34.333444Z 21 Execute delete from words where id = 1
2020-05-04T15:21:34.344075Z 21 Execute delete from words where id = 10
2020-05-04T15:21:34.351728Z 21 Reset stmt
2020-05-04T15:21:34.352101Z 21 Execute delete from words where id = 100
2020-05-04T15:21:34.356117Z 21 Reset stmt
2020-05-04T15:21:34.356407Z 21 Execute delete from words where id = 66

翻翻源码

jdbc conenctor

prepare的时候,会先从缓存中取:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
// com.mysql.cj.jdbc.ConnectionImpl#prepareStatement(java.lang.String, int, int)
@Override
public java.sql.PreparedStatement prepareStatement(String sql, int resultSetType, int resultSetConcurrency) throws SQLException {
synchronized (getConnectionMutex()) {
checkClosed();

//
// FIXME: Create warnings if can't create results of the given type or concurrency
//
ClientPreparedStatement pStmt = null;

boolean canServerPrepare = true;

String nativeSql = this.processEscapeCodesForPrepStmts.getValue() ? nativeSQL(sql) : sql;

if (this.useServerPrepStmts.getValue() && this.emulateUnsupportedPstmts.getValue()) {
canServerPrepare = canHandleAsServerPreparedStatement(nativeSql);
}

if (this.useServerPrepStmts.getValue() && canServerPrepare) {
if (this.cachePrepStmts.getValue()) {
synchronized (this.serverSideStatementCache) {
// 从cache中取出来
pStmt = this.serverSideStatementCache.remove(new CompoundCacheKey(this.database, sql));

if (pStmt != null) {
// 强转为ServerPreparedStatement,清理参数,直接返回
((com.mysql.cj.jdbc.ServerPreparedStatement) pStmt).setClosed(false);
pStmt.clearParameters();
}

if (pStmt == null) {
// 创建新的ServerPreparedStatement
try {
pStmt = ServerPreparedStatement.getInstance(getMultiHostSafeProxy(), nativeSql, this.database, resultSetType,
resultSetConcurrency);
if (sql.length() < this.prepStmtCacheSqlLimit.getValue()) {
((com.mysql.cj.jdbc.ServerPreparedStatement) pStmt).isCached = true;
}

pStmt.setResultSetType(resultSetType);
pStmt.setResultSetConcurrency(resultSetConcurrency);
} catch (SQLException sqlEx) {
// Punt, if necessary
if (this.emulateUnsupportedPstmts.getValue()) {
pStmt = (ClientPreparedStatement) clientPrepareStatement(nativeSql, resultSetType, resultSetConcurrency, false);

if (sql.length() < this.prepStmtCacheSqlLimit.getValue()) {
this.serverSideStatementCheckCache.put(sql, Boolean.FALSE);
}
} else {
throw sqlEx;
}
}
}
}
} else {
// only canServerPrepare
try {
pStmt = ServerPreparedStatement.getInstance(getMultiHostSafeProxy(), nativeSql, this.database, resultSetType, resultSetConcurrency);

pStmt.setResultSetType(resultSetType);
pStmt.setResultSetConcurrency(resultSetConcurrency);
} catch (SQLException sqlEx) {
// Punt, if necessary
if (this.emulateUnsupportedPstmts.getValue()) {
pStmt = (ClientPreparedStatement) clientPrepareStatement(nativeSql, resultSetType, resultSetConcurrency, false);
} else {
throw sqlEx;
}
}
}
} else {
// 正常流程
pStmt = (ClientPreparedStatement) clientPrepareStatement(nativeSql, resultSetType, resultSetConcurrency, false);
}

return pStmt;
}
}

ServerPreparedStatement的继承关系

statement关闭时会重新放入缓存:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
// com.mysql.cj.jdbc.ServerPreparedStatement#close
@Override
public void close() throws SQLException {
JdbcConnection locallyScopedConn = this.connection;

if (locallyScopedConn == null) {
return; // already closed
}

synchronized (locallyScopedConn.getConnectionMutex()) {

if (this.isCached && isPoolable() && !this.isClosed) {
clearParameters();

this.isClosed = true;
// 重新缓存起来
this.connection.recachePreparedStatement(this);
return;
}

this.isClosed = false;
realClose(true, true);
}
}

// com.mysql.cj.jdbc.ConnectionImpl#recachePreparedStatement
@Override
public void recachePreparedStatement(JdbcPreparedStatement pstmt) throws SQLException {
synchronized (getConnectionMutex()) {
if (this.cachePrepStmts.getValue() && pstmt.isPoolable()) {
synchronized (this.serverSideStatementCache) {
Object oldServerPrepStmt = this.serverSideStatementCache.put(
new CompoundCacheKey(pstmt.getCurrentCatalog(), ((PreparedQuery<?>) pstmt.getQuery()).getOriginalSql()),
(ServerPreparedStatement) pstmt);
if (oldServerPrepStmt != null && oldServerPrepStmt != pstmt) {
((ServerPreparedStatement) oldServerPrepStmt).isCached = false;
((ServerPreparedStatement) oldServerPrepStmt).setClosed(false);
((ServerPreparedStatement) oldServerPrepStmt).realClose(true, true);
}
}
}
}
}

druid

druid的配置说明中,有如下的介绍,也有了一个更短的名字PSCache

配置 缺省值 说明
poolPreparedStatements false 是否缓存preparedStatement,也就是PSCache。PSCache对支持游标的数据库性能提升巨大,比如说oracle。在mysql下建议关闭。
maxPoolPreparedStatementPerConnectionSize -1 要启用PSCache,必须配置大于0,当大于0时,poolPreparedStatements自动触发修改为true。在Druid中,不会存在Oracle下PSCache占用内存过多的问题,可以把这个数值配置大一些,比如说100

看下相关的代码:

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
// com.alibaba.druid.pool.DruidPooledConnection#closePoolableStatement
public void closePoolableStatement(DruidPooledPreparedStatement stmt) throws SQLException {
PreparedStatement rawStatement = stmt.getRawPreparedStatement();

if (holder == null) {
return;
}

if (stmt.isPooled()) {
try {
rawStatement.clearParameters();
} catch (SQLException ex) {
this.handleException(ex, null);
if (rawStatement.getConnection().isClosed()) {
return;
}

LOG.error("clear parameter error", ex);
}
}

PreparedStatementHolder stmtHolder = stmt.getPreparedStatementHolder();
stmtHolder.decrementInUseCount();
// holder.isPoolPreparedStatements 对应上面配置的开关
if (stmt.isPooled() && holder.isPoolPreparedStatements() && stmt.exceptionCount == 0) {
// 放入缓存池子中
holder.getStatementPool().put(stmtHolder);

stmt.clearResultSet();
holder.removeTrace(stmt);

stmtHolder.setFetchRowPeak(stmt.getFetchRowPeak());

stmt.setClosed(true); // soft set close
} else if (stmt.isPooled() && holder.isPoolPreparedStatements()) {
// the PreparedStatement threw an exception
stmt.clearResultSet();
holder.removeTrace(stmt);

// 开启了PSCache但是这个stmt抛出过异常,直接从缓存中移除
holder.getStatementPool()
.remove(stmtHolder);
} else {
try {
//Connection behind the statement may be in invalid state, which will throw a SQLException.
//In this case, the exception is desired to be properly handled to remove the unusable connection from the pool.
stmt.closeInternal();
} catch (SQLException ex) {
this.handleException(ex, null);
throw ex;
} finally {
holder.getDataSource().incrementClosedPreparedStatementCount();
}
}
}

管理这个cache的最终是com.alibaba.druid.pool.PreparedStatementPool,内部是用的LinkedHashMap实现的

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
// com.alibaba.druid.pool.PreparedStatementPool.LRUCache
public class LRUCache extends LinkedHashMap<PreparedStatementKey, PreparedStatementHolder> {

private static final long serialVersionUID = 1L;

public LRUCache(int maxSize){
// 最后一个参数true,保证了是按照访问顺序存储的
// the ordering mode - <tt>true</tt> for access-order,
// <tt>false</tt> for insertion-order
super(maxSize, 0.75f, true);
}

protected boolean removeEldestEntry(Entry<PreparedStatementKey, PreparedStatementHolder> eldest) {
boolean remove = (size() > dataSource.getMaxPoolPreparedStatementPerConnectionSize());

if (remove) {
closeRemovedStatement(eldest.getValue());
}

return remove;
}
}

开启了druid的poolPreparedStatements,就不用开启jdbc的相关缓存了; 此外druid还有sharePreparedStatements等特性,后面可以接着研究一波。

其他

bug问题

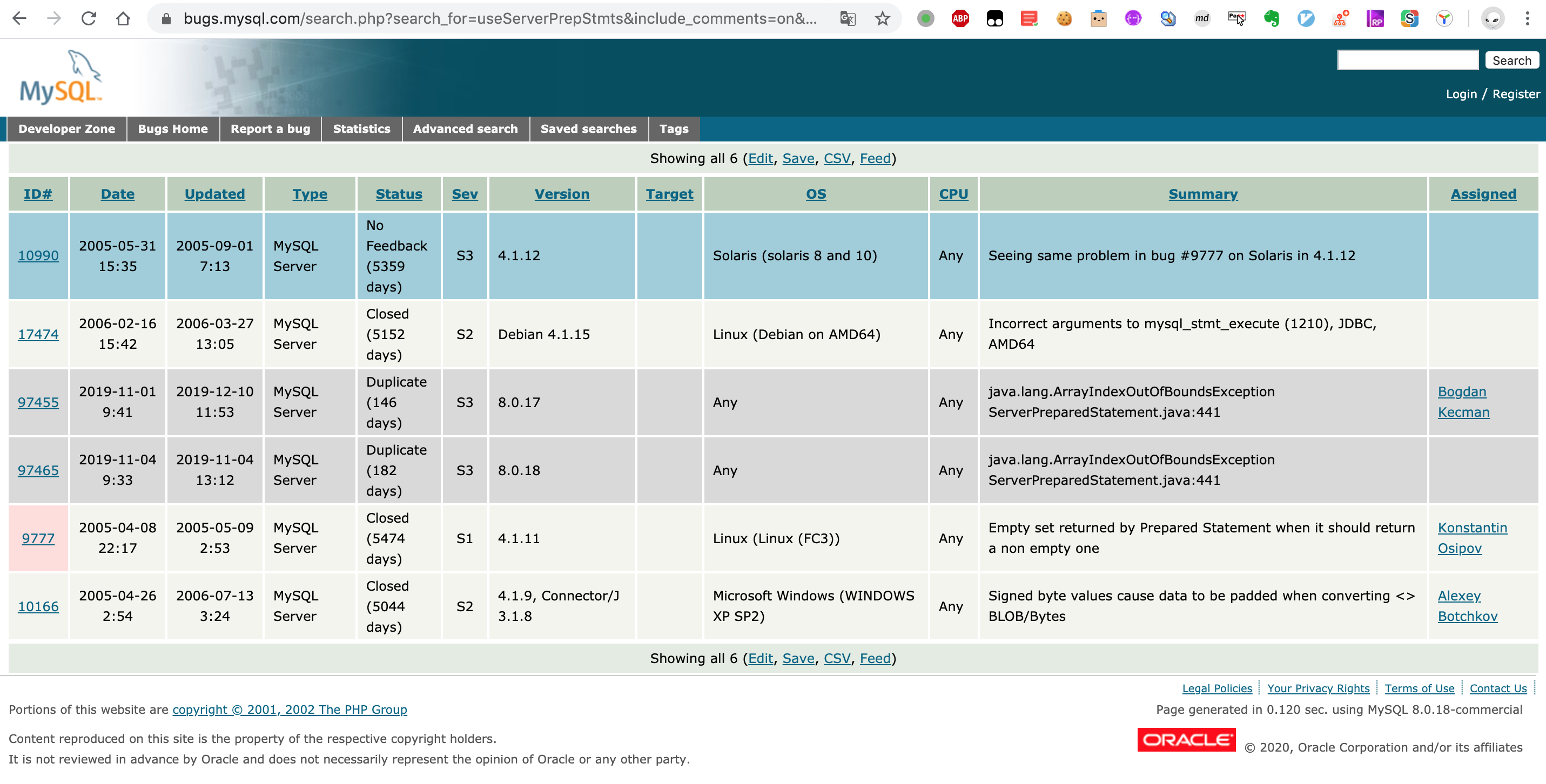

看到一些文章说,这两个参数有bug,专门查了下,大部分是connector的bug,升级即可;server端的bug很少。

聊聊一次与DeadLock的相遇

三、mysql 报错 Unknown type ‘14 in column 3 of 5 in binary-encoded result set - 爱笑的berg - 博客园

是否需要开启

浅析MySQL JDBC连接配置上的两个误区中对这个问题,有比较好的说明:

综上所述,现在在使用MySQL时(如果版本比较新的话),出于性能考虑,应该在数据库连接池上开启针对PreparedStatement的缓存。如果没有使用连接池,或者所用的连接池不支持PSCache,也可以在JDBC连接上设置cachePrepStmts=true。

当然,加上这些参数之后,还是应该观察下系统的监控,看看是否性能有提升。

其中提到了useConfigs=maxPerformance, 查了下官网:

1
2
3
4
5
6
7
8
--  maxPerformance相当于打开了
cachePrepStmts=true
cacheCallableStmts=true
cacheServerConfiguration=true
useLocalSessionState=true
elideSetAutoCommits=true
alwaysSendSetIsolation=false
enableQueryTimeouts=false

类似的还有:solarisMaxPerformancefullDebugcoldFusion等,可以在MySQL :: MySQL Connector/J 5.1 Developer Guide :: 5.3 Configuration Properties for Connector/J找到对应的解释。

另外,HikariCP的wiki里也有一篇MySQL Configuration · brettwooldridge/HikariCP Wiki, 也是建议开启。

参考
